Section 5 Functional Enrichment
Description: This pipeline generates dot plot visualizations for the enriched pathways. The results can be obtained from applying either Metabolite Set Enrichment Analysis (MSEA) or Over-Representation Analysis (ORA) performed on the MetaboAnalyst online platform.
Project Initialization:
#Sets the working directory and creates subfolders for organizing outputs.
mypath= "C:/Users/USER/Documents/Github/CRC_project/"
dir.create("output")
dir.create("plots")
dir.create("input")#Load libraries
library(tibble)
library(plyr)
library(dplyr)
library(tidyverse)
library(openxlsx)
library(cowplot)
library(ggplot2)# The enrichment was applied using Metaboanalyst online website
# load enrichment results
enrich_table = read.csv(paste0(mypath,"input/enrichment_table.csv"))
colnames(enrich_table)## [1] "new_pathway_name" "Total.Cmpd" "Hits" "Statistic.Q"
## [5] "Expected.Q" "Raw.p" "Holm.p" "FDR"
## [9] "fold_enrichment" "P.adj.FDR.log" "signif"5.1 Data Preparation
# add necessary columns for plotting
#enrich_table$fold_enrichment <- enrich_table$hits /enrich_table$total
enrich_table$fold_enrichment <- enrich_table$Hits /enrich_table$Total.Cmpd
#enrich_table$fold_enrichment <- round(enrich_table$fold_enrichment,2)
enrich_table$FDR.log <- -log10(enrich_table$FDR)
enrich_table$signif <- ifelse(enrich_table$P.adj.FDR.log >= -log10(.05), "sig", "non")
table( enrich_table$signif) ##
## sig
## 39# adjust pathway names
colnames(enrich_table)[1] <- "new_pathway_name"
enrich_table$new_pathway_name= gsub("%.*", "", enrich_table$new_pathway_name)
# remove duplicated pathways
enrich_table <- enrich_table[!duplicated(enrich_table$new_pathway_name),]
# plot only significant pathways
enrich_table <- enrich_table[enrich_table$signif== "sig",]5.2 Enrichment plot

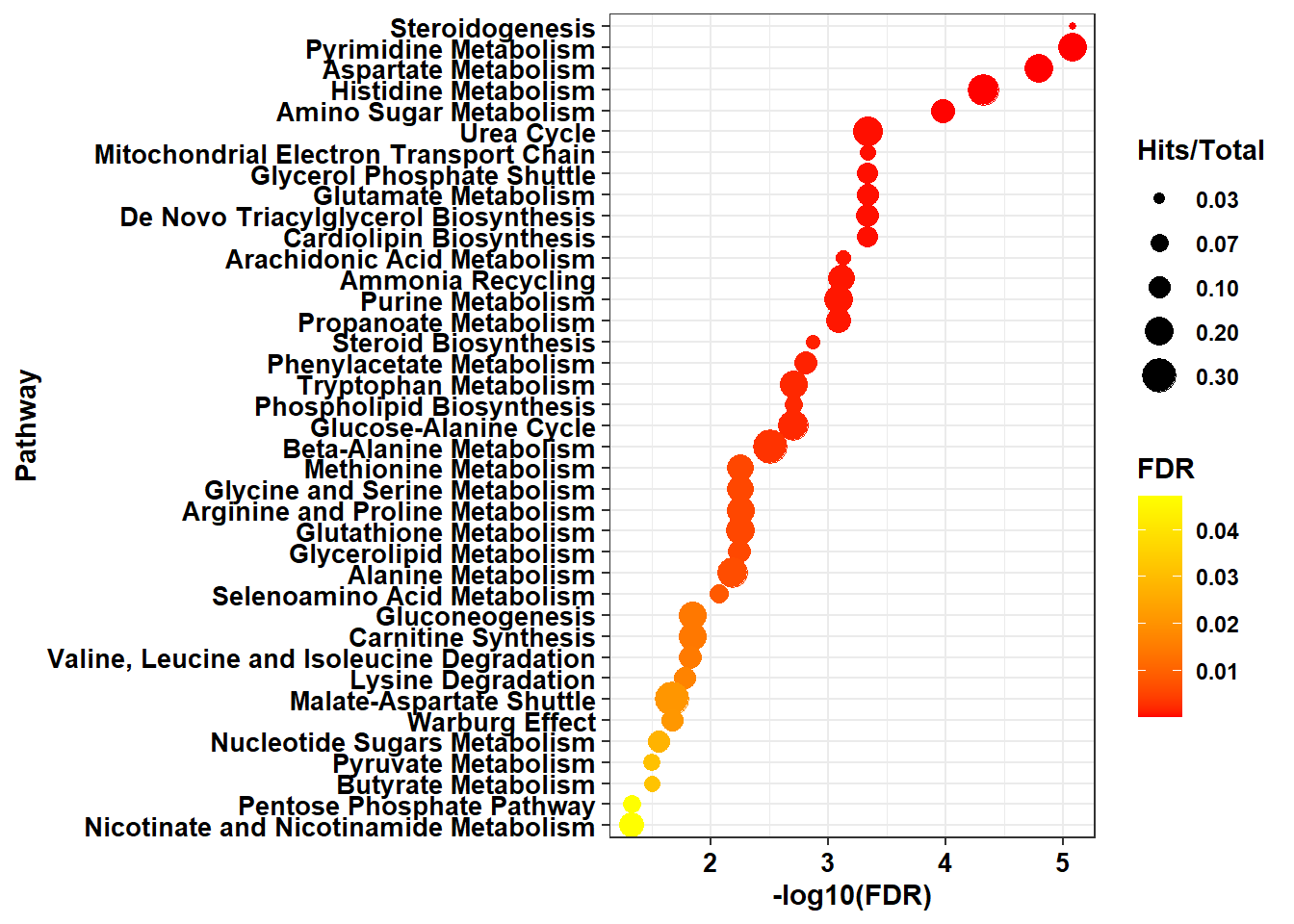

plot1 <- ggplot(data=enrich_table, aes( y = reorder(new_pathway_name, FDR.log),
x = FDR.log,
size = fold_enrichment,
color = FDR )) +
geom_point() +
scale_size_continuous(guide = guide_legend(order = 2), breaks = c( 0.03, 0.07, 0.1, 0.2, 0.3)
) +
scale_color_gradient(low = "red", high = "yellow", name = "FDR") +
#breaks = c(min(enrich_table$FDR), 0.25,0.50, 0.75, max(enrich_table$FDR)),
#labels = c( round(min(enrich_table$FDR),2), 0.25, "0.50", 0.75, round(max(enrich_table$FDR),2))) + # Customize the color scale
labs(size = "Hits/Total") +
xlab("-log10(FDR)") +
ylab("Pathway") +
theme_bw() +
theme(legend.position="right", text = element_text(face="bold"),
axis.text = element_text(color = "black", face = "bold")) +
theme(axis.text = element_text(color = "black", face = "bold", size = 10))
print(plot1)
